Type E Air Conditioning Hose

  • Type E Air Conditioning Hose
  • Type E Air Conditioning Hose
  • Type E Air Conditioning Hose

Type E Air Conditioning Hose

Product Structure Diagram

Product Introduction

- Light weight and flexible

- Temperature range of -40 °C to +135 °C

- Meets SAE J2064  SAE J3062  QC/T664-2019

- Compatible with R32/R 410a/R 1234yf/ R134a/ R 410a/R404a refrigerants and mineral oils / PAGs

contact us

Sizes and performance parameters of type E air conditioner hose

Number Dimension.  mm Inch I.D.  mm 0. D. mm Wall Thickness. mm Wall Diff Max. mm Work Pressure Max. MPa Burst Pressure Min. MPa Bend Rad Min. mm Weight.g/m
BH8 8 5/16" 8. 2 ±0.4 18.9±0.5 5. 25 0.6 3.5 15 55 261
BH10. 5 10 13/32" 10.0 U 22.5±0.5 6 0.6 3.5 15 85 411
BH13 13 1/2" 13.0±0.4 23.0±0. 5 5 0.6 3.5 15 90 485
BH16 16 5/8" 16.0±0.5 28.0±0. 6 6 0.6 3.5 15 105 558
A8 8 5/16" 8. 2 ±0.3 15. 2 ±0.4 3.5 0.4 3.5 18 55 155
A10 10 13/32" 10. 2 ±0. 3 17. 2 ±0.4 3.5 0.4 3.5 18 65 178
All.2 11. 5 13/32" 11.2±0.3 18.4±0.4 3.6 0.4 3.5 18 75 201
A13.2 13 1/2" 13. 2 ±0.3 20.8±0. 4 3.8 0.4 3.5 18 75 241
A15.2 15.5 5/8" 15. 2 ±0.4 22.8±0. 5 3.8 0.4 3.5 16 85 271


Appliable refrigerant: R 134a / R 404a / R 1234yf
Standard: SAE J2064 SAE J3062 QC/T664-2019

/ Experts are Here to Help you

Leave us a message

send message
/ WHO WE ARE

Kedali INDUSTRY

Zhejiang Kedali Industrial Co., Ltd. is committed to the R&D, production and sales of vehicle air condition hoses, hydraulic brake hoses, pneumatic brake hoses, adblue pipes, oil cooling pipes, power steering hoses, water pipes, oil pipes, vacuum brake hoses and tube assembly. As China Type E Air Conditioning Hose manufacturers, With highly automated production capacity and rich management experience, the company has the ability to produce 40 million meters of various rubber hoses and 5 million sets of assemblies annually. With modern equipment and three-dimensional storage system, it can accommodate products pieces, better control the quality, ensure the inventory and timely delivery. As a well-known OEM Type E Air Conditioning Hose factory, Kedali advocates the belief of “pursuit of excellence, integrity based”, takes the national model brand and industry product benchmark as its mission, and is dedicated to providing our partners with safe, reliable, cost-effective products and quality services.

  • 0+

    Industry experience
  • 0

    Plant area (㎡)
  • 0 million

    Annual output of various rubber hoses (m)
  • 0 million

    Assembly products (sets)
/ Our advantages

Guarantee High Quality With Our Expertise

The company has the internationally advanced production technology and equipment for automotive rubber hoses, and has jointly developed new products with many well-known research institutions and testing centers in China. In order to meet the needs of the continuous development of the automobile industry and the development of new technologies and products, the company has set up a research and development center and a product testing and testing center

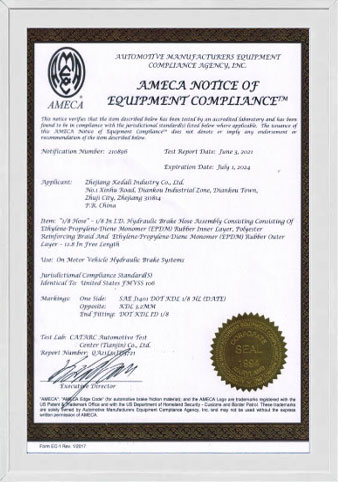

/ Patent certificate and quality inspection certificate

Our Certifications

prev
next
/ Understand industry trends

News & Exhibitions

Industry Knowledge Development

Type E air conditioning hose is a type of hose specifically designed for use in automotive air conditioning systems. It is a flexible hose that is used to transport refrigerant between different components of the air conditioning system, such as the compressor, condenser, and evaporator.

Type E air conditioning hose is typically made from a combination of synthetic rubber and nylon materials, which provide the necessary flexibility, strength, and resistance to high pressure and temperature. It is also designed to be compatible with the specific type of refrigerant used in automotive air conditioning systems, such as R134a.

In summary, Type E air conditioning hoses are a specialized type of hose designed specifically for use in automotive air conditioning systems, and are made from materials that provide the necessary flexibility, strength, and compatibility with the refrigerant used in these systems.

When choosing a Type E air conditioning hose, there are several factors to consider to ensure that it is the right fit for your application. Here are some things to keep in mind:
1.Size: Make sure you choose a hose that is the right size for your application. The size of the hose is typically measured in inches or millimeters, and it refers to the inside diameter of the hose.
2.Material: Type E air conditioning hoses are typically made from a combination of rubber and synthetic materials. Make sure you choose a hose that is made from high-quality materials that are resistant to heat, wear, and tear.
3.Pressure rating: The pressure rating of the hose refers to the maximum amount of pressure that the hose can withstand. Make sure you choose a hose with a pressure rating that is appropriate for your application.
4.Temperature rating: The temperature rating of the hose refers to the maximum and minimum temperatures that the hose can withstand. Make sure you choose a hose with a temperature rating that is appropriate for your application.
5.Compatibility: Make sure the hose you choose is compatible with the refrigerant you are using. Different types of refrigerants require different types of hoses, so be sure to check the manufacturer's specifications.
6.Durability: Look for a hose that is durable and long-lasting, especially if it will be exposed to harsh environmental conditions or constant use.
7.Certification: Choose a hose that is certified by an industry-standard organization such as SAE International or UL (Underwriters Laboratories) to ensure that it meets safety and performance standards.
By considering these factors, you can select a Type E air conditioning hose that is suitable for your specific needs and will perform reliably over time.

Here are some precautions to keep in mind when using Type E air conditioning hose:
1.Use only Type E hose rated for the specific refrigerant and pressure rating required for your air conditioning system.
2.Make sure the hose fittings and connections are clean and free of debris before installation. Use the recommended torque specifications for tightening fittings to prevent leaks.
3.Keep the hose away from sharp edges, hot surfaces, and other sources of potential damage.
4.Avoid kinking or bending the hose beyond its recommended bend radius, as this can cause damage and reduce flow.
5.Inspect the hose regularly for signs of wear, damage, or leaks. Replace the hose if any issues are found.
6.Handle the hose carefully to avoid any unnecessary stress on the fittings or the hose itself.
7.Follow the manufacturer's recommendations for maintenance and replacement intervals.
By following these precautions, you can help ensure the safe and effective use of Type E air conditioning hose in your system.
